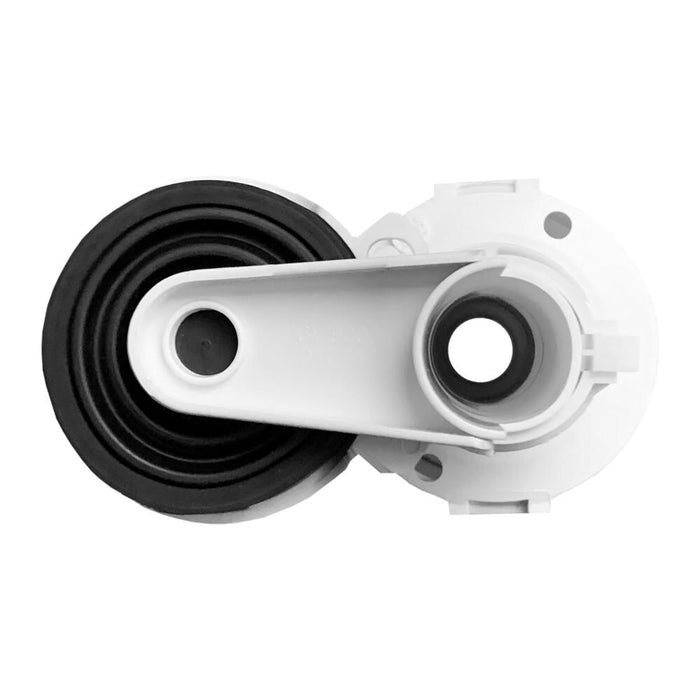

Thomas Dudley Pinto / Derwent Macdee Compact 2" Pneumatic Single Flush Toilet Flush Valve 316129 / PSPOVP316129 / DGF4020
The single flush pneumatic Pinto flush valve from Thomas Dudley (also known as the Derwent Macdee Compact flush valve) is ideal for both new and retrofit installations with it's adjustable internal overflow.
With it's 2 part design you need not worry about removing the entire cistern to service the valve in future, just simply twist the valve anti-clockwise and the whole top mechanism just lifts right out.
All that is needed then is to simply twist the new valve into place in a clockwise direction, set the valve to your desired height, connect the pneumatic tubing and you're ready to go. The valve also comes complete with a huge 2.4m length of pneumatic tubing which makes this valve ideal for in-wall installations.
Height: 270mm - Including base. Height can be adjusted.
Width: 130mm - Including base.
Depth: 80mm - Including base.
Contents: 1 x Flush valve complete with pneumatic bellows washer, base sealing washer, backnut and pneumatic tubing.
Suitability: Suitable for use with Thomas Dudley Pushflo and Derwent Macdee Compact cisterns, Large Dome and Small Cone buttons.
Thread Diameter: 2"
Flush Type: Single flush.
Manufacturer: Thomas Dudley
