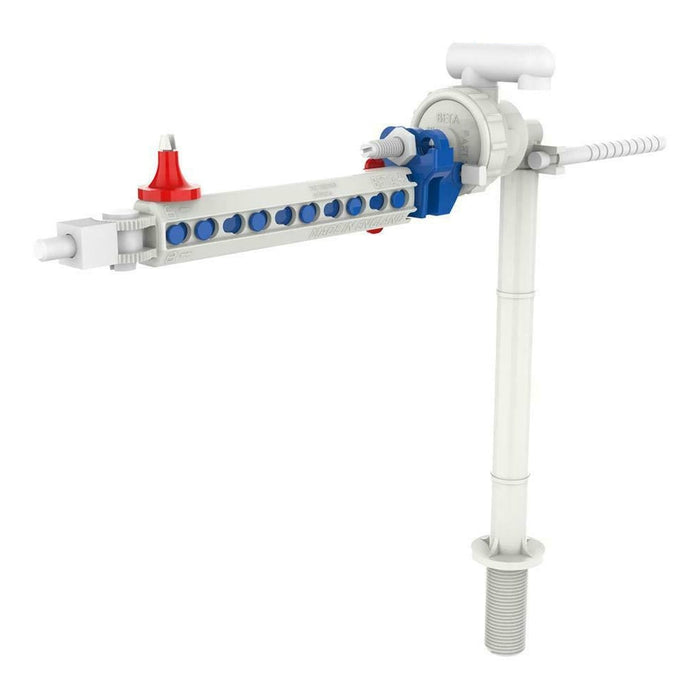

Thomas Dudley Beta+ 1/2" Plastic Bottom Entry Toilet Cistern Inlet Float Valve 332318

by Thomas Dudley

Fits virtually all float operated cisterns and offers the highest level of inlet valve adjustability.

Quick and easy installation.

User friendly arm length adjustability from 185mm (7 1/4”) to 285mm (11 1/4”).

Lateral arm adjustment positions improve variability in arm and float positioning.

High and low pressure valve configurations to suit mains and tank fed systems.

Arm Length: 185mm - 285mm

Height: 228mm

Thread Length: 50mm

Connection: 1/2” BSP plastic tail

Valve Type: Diaphragm

Float Type: Ball (Not included, available separately)

Operational Pressure: 0.1 - 14 BAR

Arm Load Limit: Tested to 4.4N

Conformity: BS 1212-3
