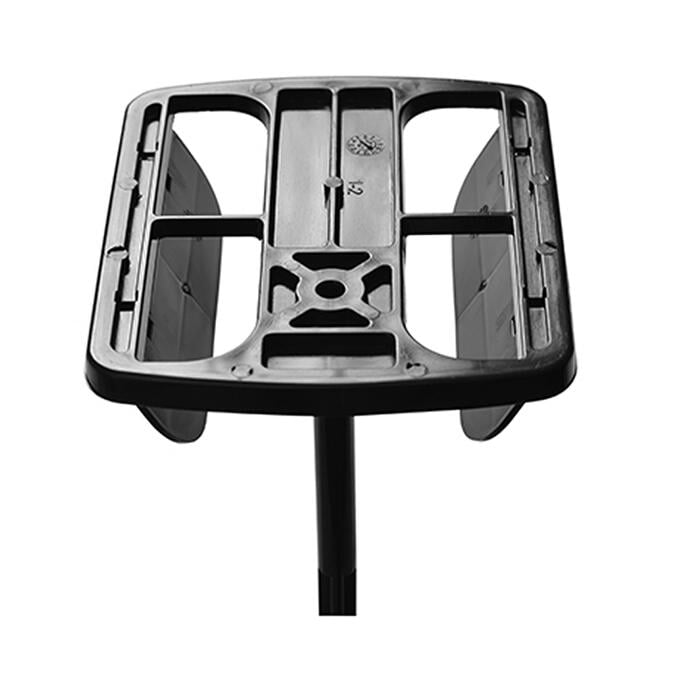

Derwent Macdee Motion Adjustable Toilet Cistern Lever Flush Syphon 10120045
The Motion from Derwent Macdee is a unique all-in-one universal dual flush syphon unit. The Macdee Motion syphon features water saving dual flush capabilities with a large selection of flush volume settings.
The syphon features a unique adjustable design which adjusts from 7.5" to 10.5" which is the widest range on the market. The syphon also features a compact design which allows it to fit into all lever flush toilet cisterns currently on the market. The syphon also has a unique seal which is provided by the cistern water, this eliminates the need to use traditional washers.
Unlike other syphons on the market, the Macdee Motion features a diaphragm-less design with it's efficient and robust flapper system. With the Motion's 2 part design, servicing and replacing is a breeze. Simply remove the locking clip on the side of the syphon and the entire top section can be removed, eliminating the need to remove the entire unit from the cistern, saving you time and money.
Overall Height: 288 - 366mm
Width: 180mm (Bell housing and stem)
Depth: 105mm (Bell housing)
Materials: Plastic housing, metal C hook and a rubber base sealing washer.
Contents: 1 x Macdee motion dual flush syphon, 2 x C hooks (2 1/4" and 4 3/8"), backnut, coupling nut, sealing washer and a low level pipe seal.
Suitability: With it's adjustable design and compact form factor, the Macdee Motion should be suitable for most lever flush toilet cisterns.
Thread Diameter: 1 1/2"
Number of Parts: 2 parts.
Flush Volumes: Variable flush volumes are available on this syphon.
Manufacturer: Derwent Macdee / Wirquin
