Derwent Macdee Metro Rapid 3 Part D Shape Toilet Cistern Lever Flush Syphon

Original price £17.50 - Original price £17.50
Original price
£17.50 - £17.50
Current price £17.50
Choose a Syphon Height
In stock
In stock
In stock
In stock
In stock
In stock
Request a quote

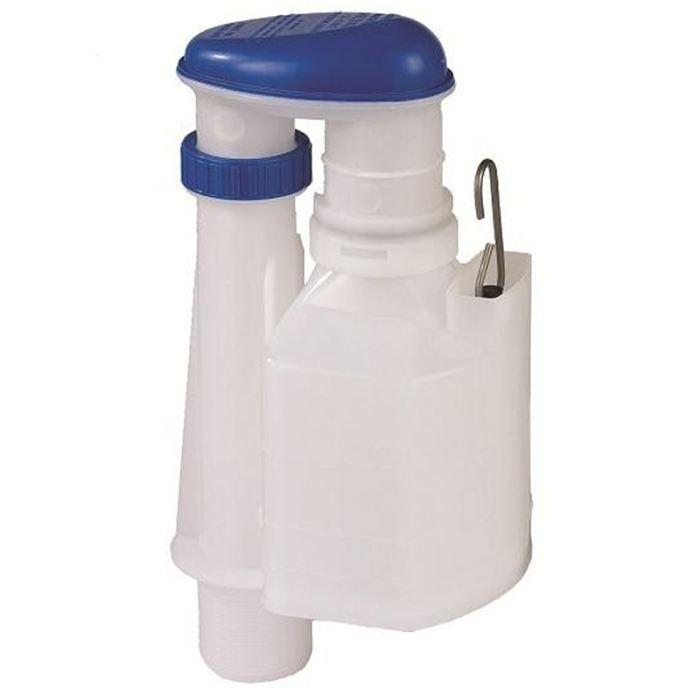

The Macdee Metro 3-part WRAS approved syphon range provides the most traditional, tried and tested solution for lever flush WC Flushing. The range includes four distinct shapes to ensure compatibility with most cisterns; oblong, round, d shaped and square.

These syphons have an easy to remove upper section allowing for easy maintenance or replacement without the need to remove the cistern. The syphon comes complete with a backnut, a coupling nut, sealing washer and a low level flush pipe seal as standard. All syphons come with a pre-installed diaphragm washer and feature an internal overflow.

The D shaped version is recommended for use in compact or slimline cisterns.

Please note: All syphons in the Macdee Metro range are now made from grey plastic. These syphons are usually compatible with almost all of the older, green, red, or blue cap syphons from Macdee, however some of the older batches used a slightly different design / thread for the securing nut on the top the stem / downpipe. As such, the new syphon may not be compatible with some of the older stems. In such a case you'll likely need to replace the complete syphon assembly including the stem, as syphons with this older connection are no longer manufactured.

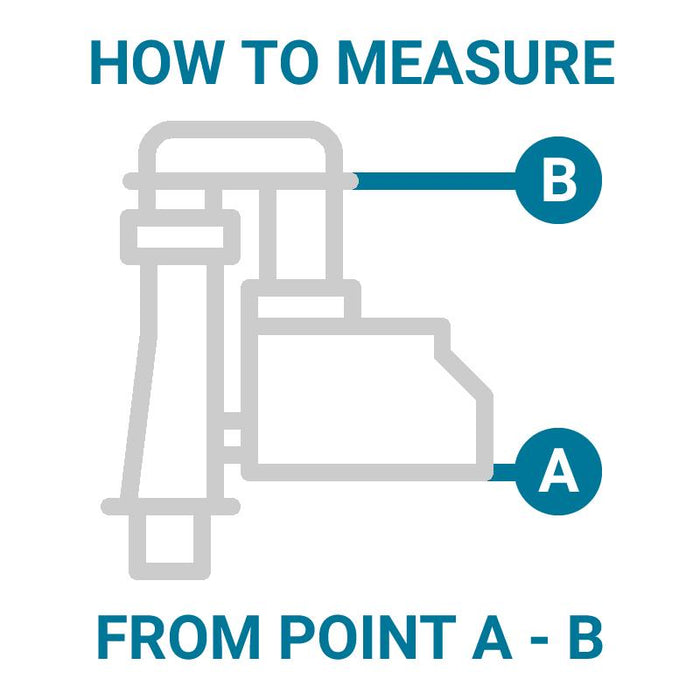

Overall Height: 275mm (7.5"), 290mm (8"), 317mm (9"), 330mm (9.5"), 340mm (10"), 350mm (10.5")

Width: 153mm (Bell housing and stem)

Depth: 127mm (Bell housing)

Materials: Plastic housing, metal C hook and a rubber base sealing washer.

Contents: 1 x Syphon complete with diaphragm washer, C hook, backnut, coupling nut, sealing washer and a low level pipe seal.

Suitability: Recommended for use in compact or slimline lever flush cisterns.

Thread Diameter: 1 1/2"

Number of Parts: 3 parts.

Flush Volumes: No variable flush volumes are available with this syphon.

Manufacturer: Derwent Macdee / Wirquin

Click any of the links below to view / download.

Installation instructions. (292KB)

Available Delivery Options:

£1 - Royal Mail Letter (2 - 3 Working Days)

£6 - Royal Mail Parcel (3 - 4 Working Days)

Please note: These delivery times are approximate and are only to be used as a guide. Delivery times may be longer or shorter than what is displayed due to factors outside of our control.

We strongly advise against organising a plumber before you have received your order.
