Derwent Macdee Kayla Cable Operated Dual Flush Toilet Cistern Flush Valve AFV50100 / AFV50200 DVA0100

Original price £16.49 - Original price £16.49
Original price
£16.49 - £16.49
Current price £16.49
Request a quote

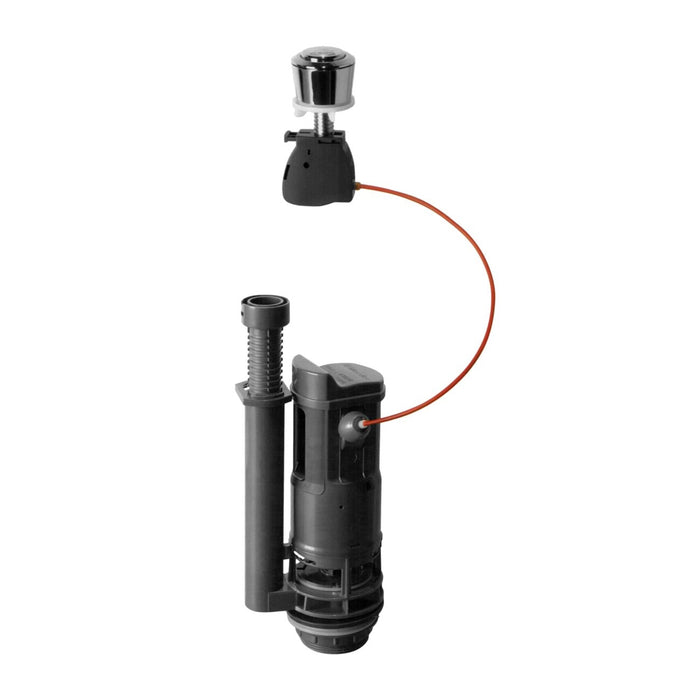

The Kayla cable operated dual flush valve is our best selling flush valve from Derwent Macdee. The valve is suitable for retrofit and new installations and high traffic areas.

The flush valve can be used with concealed, close coupled and low level cisterns. The top section of the valve is compatible with existing AFV40100 / AFV40200 sockets.

The valve is commonly used as an equivalent replacement for the discontinued Derwent Macdee Pacific flush valve.

Please note: The Derwent Macdee Kayla flush valve is now made out of grey plastic, however the moulding is identical to the yellow cable version of this flush valve - ensuring compatibility with all previous AFV50100 / AFV50200 sockets.

The valve comes complete with a button. The cable on the valve is 400mm excluding the mechanism that attaches to the button. The base sealing washers that come with the valve allow it to be used with both 2" (50mm) an 1 1/2" (40mm) outlets.

The valve comes complete with an adjustable overflow tube which adjusts from 190mm to 330mm.

Height: 260mm (Including base and thread.) - Height of overflow tube is adjustable.

Width: 115mm

Depth: 80mm

Materials: Main body of valve is plastic, the base sealing washers are rubber, one of the washers is plastic.

Contents: Flush valve complete with non-removable cable and connection for button, round push button, a rubber base sealing washer, 2 x securing nuts, and a plastic base sealing washer.

Suitability: Suitable for retrofit and new installations and high traffic areas. Can be used with concealed, close coupled and low level cisterns.

Thread Diameter: 1 1/2" (Supplied with an optional base sealing washer for use in cisterns with a 2" outlet.)

Flush Type: Dual flush

Operation: Cable

Manufacturer: Derwent Macdee / Wirquin

Click any of the links below to view / download.

Installation instructions. (1.61MB)
